Tapioca Starch Tumbler Screening Machine

Tumbler sieve is a kind of evolving from artificial screen. The movement of circular motion and toss (upward parabolic movement) are fully embodied.

Product Details

Tumbler Screening Machines

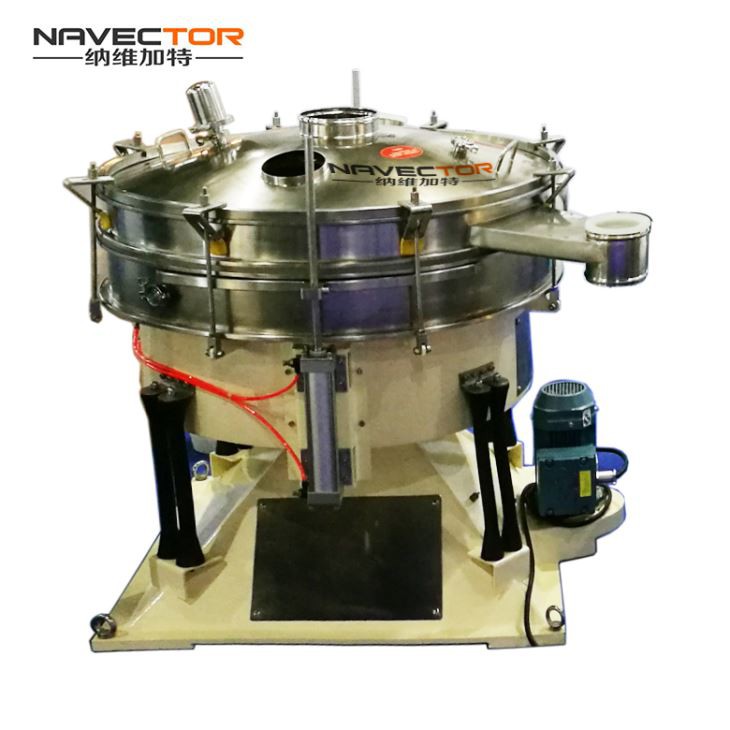

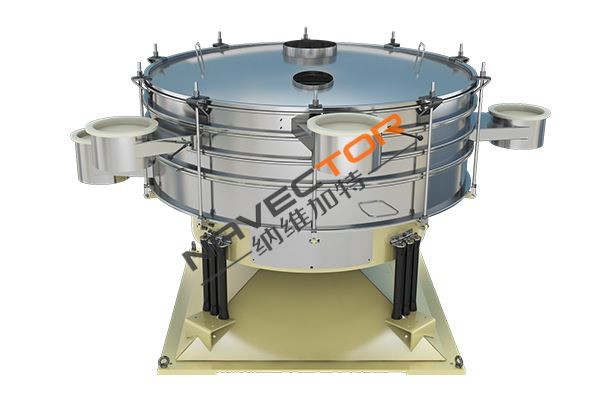

Tapioca Starch Tumbler Screening Machine


Tumbler Screener Description

Tumbler sieve is a kind of evolving from artificial screen. The movement of circular motion and toss (upward parabolic movement) are fully embodied. By adjusting the Radial angle and Tangential angle to change the amplitude of circular motion and toss. Advanced technology and design for better performance in round screen ! The motion of tumbler sieve is double pendulum movement that generated by ordinary vertical motor drives eccentric wheel. The material forms a regular gradually grounding parabolic motion by adjusting the radial angle and tangential angle.


Screening Features

• Modular, self-centering and expandable design
• Up to 7 separations simultaneously on each machine
• Slow speed and three-dimensional motion for optimal screening
• Delivered ready to operate and optimized for each product (Plug & Play)
• Up to 100% availability in 24 h operation
• Low acceleration and low maintenance requirements, no product degradation
• Dustproof, CE compliant, FDA approved rubber and plastic materials
• Stainless steel 1.4301 intermediate rings and screen frame are standard
• Very competitively priced with short delivery times


Tumbler Screening Machine Data Sheet

Feed Sizes

20 μm – 20 mm

Feed Rates

1 kg/h – 50.000 kg/h

Bulk Densities

20 – 10.000 g/l

Mesh Openings

20 μm – 20 mm

Screens Usable

Stainless steel wire or perforated plates

No. of Decks

1 – 5

Mesh Cleaning

Jumping balls/rings, Rotating brush, Ultrasound

Speed Range

180 – 280 min–1

Screen Movement

3-dimensional, settable

Acceleration

1.3 – 1.8 g / 60 – 80 mm horizontal & 5 – 40 mm vertical

Materials

Carbon steel, stainless steels 304/316

Machine Surface Treatment

Painted, brushed or mirror polished


Established in 2005, Navector is Tumbler Screening machine manufacturer and trader specialized in the research, development and production of Tumbler Screen. We are located in shanghai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

If you are interested in any of our Tumbler Screen.or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
