Introduction
Bulk bag unloader (also known as Jumbo bag, big bag, FIBC discharger) is equipped with integral "I" beam and hoist for lifting and unloading bags into the unloader and is directly connected to an enclosed conveyor for direct transfer of material to process machinery. The bulk bag is lifted by the electric hoist onto the unloader drum where bag clamping device is equipped to prevent dust. When the bag is full of material, dual-pivot paddles push against the bottom of the bag to break material bridged over the outlet as well as agitate the sides of the bag near the spout, stimulating material movement. As the bag empties, air cylinders push the paddles further toward the center of the bag for complete discharge.
Specification for Big Bag Unloading machine
Type | NCB1000-S4 |
Load capacity | 1,600kg |
Lifting height | 5m |
Lifting speed | 3/0.75 m/min |
Voltage | 220/380 V |
Frequency | 50hz |
Trolley travel | 20/5 m/min |
Weight (acc. to overall height) | Approx. 1,000kg |
Minimum height | 4,000 mm |
Maximum height | 6,000 mm |
Min. height - bottom edge of hopper | 855 mm |
Max. height - bottom edge of hopper | 905mm |
Big bag outlet diameter | 350 to 550 mm |
Features
● Electric hoist crane and trolley loading to raise and position the bag
● Dust tight emptying unit with fully enclosed system during untying and discharging
● Material: All SS304 constructed to food standards
● Add windows and lights for easy operation.
● Design glove operating station for easy equipment operation.
● Cylinder design to squeeze and promotes flow.
● The electric hoist adopts two operation modes: wireless and wired.
● The 4-angle hanger is designed for easy operation and stable lifting.
● Installation method: fix with expansion bolts.
● Downstream docking: can be screw feeder or pneumatic conveyor

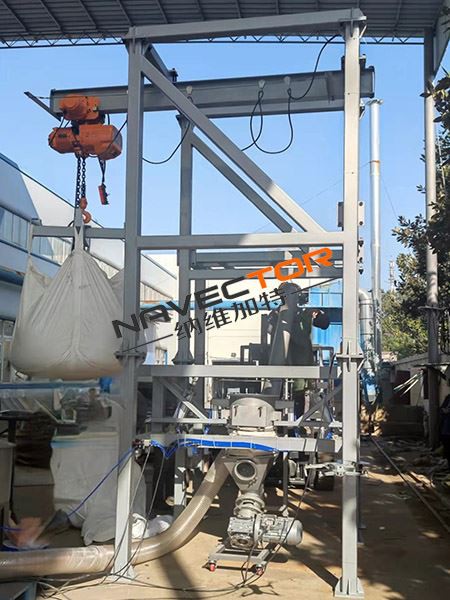

Product show
