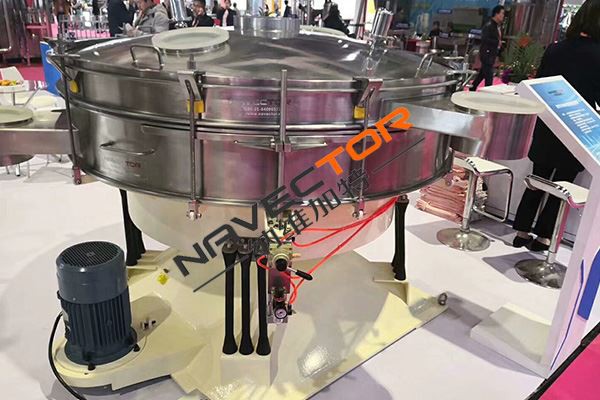

Edible Fat Tumbler Screening Machine
Its efficient Tapioca Starch Flour Sieving Machine designed specially to meet the large output and high precision screening of the manufacturers. The most simple screening is to look at with both eyes and screen with both hands.
Tapioca Starch Flour Sieving Machine
General description
Its efficient Tapioca Starch Flour Sieving Machine designed specially to meet the large output and high precision screening of the manufacturers. The most simple screening is to look at with both eyes and screen with both hands. Cocoa bean vibration sieve is the mechanical simulation of it, which is the most effective simulation of the effective principle of artificial screening (screening accuracy, efficiency, and the service life are 5-10 times of the conventional circular screen), and meets all the fine and ultrafine particulate materials, especially suitable for the material difficult to deal with.
The working principle of tumbler screener sieve machine:
♦ Basic rotary motion is similar to manual screening.Eccentricity is adjustable from 25 to 40mm, and low-speed v-type belt drive is adjustable from 120 to 360rpm.
♦ The residence time of each product can be adjusted in the direction of the driving axis by the radial and tangential angles of the swing screen.
♦ Hence, it establishes horizontal and projectile 3d tumbling motion.Materials are evenly dispersed from the center to the outer edge on the entire screen surface. So, fine particles are completely finished the whole screening process.
♦This process is repeated between each screen layer.
Mesh cleaning: Silicone bouncing balls, Rolling brush and Ultrasonic system
Tumbler Screener Parameters
MODEL SIZE | NTS1200 | NTS1500 | NTS1800 |
Screening area (m²) | 1.13 | 1.76 | 2.54 |
Diameter (mm) Ø | 1200 | 1500 | 1800 |
Motor power (kW) | 1.1KW | 4KW | 4KW |
Weight (kg): | 930–1120 | 1080–1450 | 1250-1760 |
A(mm) | 1236 | 1457 | 1500 |
B(mm) | 904 | 1132 | 1132 |
C(mm) | 757 | 950 | 950 |
D(mm) | φ250 | φ250 | φ300 |
E(mm) | φ200 | φ200 | φ300 |
F(mm) | φ200 | φ200 | φ300 |
G(mm) | 1574 | 1940 | 2334 |
K(mm) | 1210 | 1517 | 1817 |
W(mm) | 1040 | 1122 | 1400 |
L(mm) | 1040 | 1122 | 1400 |
Layers Available | 5 | 5 | 5 |
Options:
ATEX version
Use in a potentially explosive plant environment.
Bouncing ball cleaning
Use with grainy products. There are balls located between one perforated floor and the screen fabric, which strike the screen fabric from below.
Brush cleaning
Use with crystalline or spherical products. Rotation under the screen.
Ultrasonic cleaning
Use in the ultrafine mesh range. The ultrasound is input into the screen using resonators.
Air cleaning
Use with sticky products. Air blowing out of rotating nozzle arms clears the screen fabric.
Lifting devices
Quicker access to the screening inserts.
Hygienic design
Machines are available with a high-quality "pharmaceutical finish".
Air brush cleaning
Use with greasy or electrostatically charged products.
Special outlets
Individual adaptation to upstream or downstream machinery.
 |  |
Special spares
