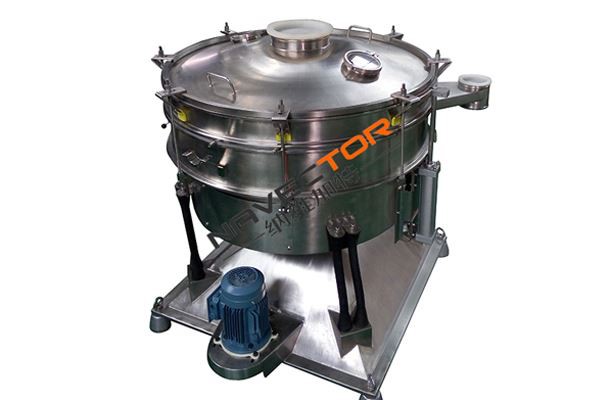

Flavours Tumbler Screening Machine

​Its efficient Tapioca Starch Flour Sieving Machine designed specially to meet the large output and high precision screening of the manufacturers.

Product Details

Tapioca Starch Flour Sieving Machine

General description

Its efficient Tapioca Starch Flour Sieving Machine designed specially to meet the large output and high precision screening of the manufacturers. The most simple screening is to look at with both eyes and screen with both hands.Cocoa bean vibration sieve is the mechanical simulation of it, which is the most effective simulation of the effective principle of artificial screening (screening accuracy, efficiency, and the service life are 5-10 times of the conventional circular screen), and meets all the fine and ultrafine particulate materials, especially suitable for the material difficult to deal with.

21


Structure principle

1. The basic rotational motion is similar to that of artificial screening. The eccentricity can be adjusted from 20 to 40 mm, and low speed V type belt driven is adjustable from 120 to 360 rpm.
2. The residence time of each product can be adjusted by the radial and chamfer angle of the swinging screen.
3. The material forms horizontal and throwing 3D roll motion and evenly disperses from the center to the edge of the sieve surface, thereby axial propagation in a helical motion. Thus fine particles complete the entire screening process.
4. The horizontal and vertical acceleration increases with the movement of materials, and the particles close to the aperture size are successfully separated; large particles are moved to the exit, where has an adjustable steering device to control the flow, which is another factor that controls the retention time of the material.
5. The process is repeated between each sieve layer.


Mesh cleaning: Silicone bouncing balls, Rolling brush and Ultrasonic system


Tumbler Screening Machine Data Sheet

Feed Sizes

20 μm – 20 mm

Feed Rates

1 kg/h – 50.000 kg/h

Bulk Densities

20 – 10.000 g/l

Mesh Openings

20 μm – 20 mm

Screens Usable

Stainless steel wire or perforated plates

No. of Decks

1 – 5

Mesh Cleaning

Jumping balls/rings, Rotating brush, Ultrasound

Speed Range

180 – 280 min–1

Screen Movement

3-dimensional, settable

Acceleration

1.3 – 1.8 g / 60 – 80 mm horizontal & 5 – 40 mm vertical

Materials

Carbon steel, stainless steels 304/316

Machine Surface Treatment

Painted, brushed or mirror polished


Tumbler Screener Parameters

MODEL SIZE

NTS1200

NTS1500

NTS1800

Screening area (m²)

1.13

1.76

2.54

Diameter (mm) Ø

1200

1500

1800

Motor power (kW)

1.1KW

4KW

4KW

Weight (kg):

930–1120

1080–1450

1250-1760

A(mm)

1236

1457

1500

B(mm)

904

1132

1132

C(mm)

757

950

950

D(mm)

φ250

φ250

φ300

E(mm)

φ200

φ200

φ300

F(mm)

φ200

φ200

φ300

G(mm)

1574

1940

2334

K(mm)

1210

1517

1817

W(mm)

1040

1122

1400

L(mm)

1040

1122

1400

Layers Available

5

5

5


Options:

ATEX version

Use in a potentially explosive plant environment.

Bouncing ball cleaning

Use with grainy products. There are balls located between one perforated floor and the screen fabric, which strike the screen fabric from below.

Brush cleaning

Use with crystalline or spherical products. Rotation under the screen.

Ultrasonic cleaning

Use in the ultrafine mesh range. The ultrasound is input into the screen using resonators.

Air cleaning

Use with sticky products. Air blowing out of rotating nozzle arms clears the screen fabric.

Lifting devices

Quicker access to the screening inserts.

Hygienic design

Machines are available with a high-quality "pharmaceutical finish".

Air brush cleaning

Use with greasy or electrostatically charged products.

Special outlets

Individual adaptation to upstream or downstream machinery.






Special spares

Navector has been a trusted manufacturer & supplier in advanced screening machines & solutions since 2005 founded in Shanghai,including full technical, mechanical and laboratory support for advanced screening work through a large scale precision separating plant.Navector’s screens and sifters are built to the highest standards of quality and precision which can process grading, classifying, filtering,or dewatering works. We have the ability to fabricate custom design products to meet unique applications with reliable compatibility.
