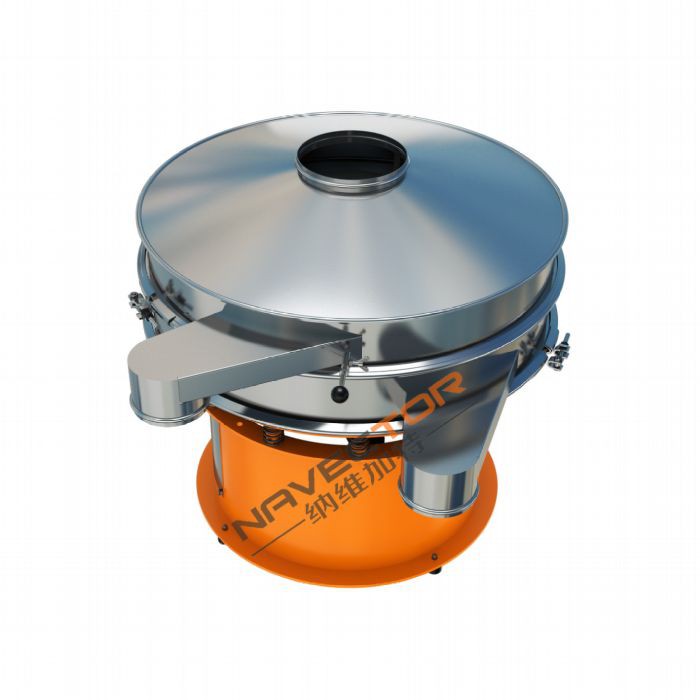

Alloy Powder Ultrasonic Vibro Screen

Vibro Sieve Shaker is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Material can be divided into all carbon steel,contact part stainless steel and all stainless steel.

Ultrasonic vibrating screen attached to the screen on the ultrasonic vibration wave (mechanical wave), makes the ultra micro powder accept huge ultrasonic acceleration, thus inhibiting adhesion, friction, flat, wedging screen blocking factors, such as can obviously improve the screening efficiency and network efficiency.

1. Specialized technology for different materials, such as granularity, density and particle shape, to be screened and developed and produced;

2. Solved the problem of the sieving of strong adsorption, free huddle, strong stickiness, high static, high density, ultrafine powder, etc.

3. The accuracy of the sieve can be increased by more than 80% and the output is increased by 2-5 times.

4. Eliminates the pollution and wear caused by the conventional screening method to the powder, and greatly reduces the noise of the screening machine;

5. Maintain mesh size, stable screening accuracy, and reduce repeated screening times;

6. It is suitable for separating powders from 20 microns to 300 microns, especially for materials with difficult screening

Function for machine:

Classification

Separation of solids into groups of liked sizes. Accurate sizing or classification of particles in two to five predetermined sizes.

Sifting and DE-dusting

Separating a small percentage of oversize or under-size solids from a large percentage of on-size solids.

DE-watering

Separating a small percentage of liquid or oversize solids from a large percentage of solids or on-size solids in a slurry.

Detailed Images

Parameters

Attachable functions

Reverse
Reverse revolution during screening aims at perfect screening
The materials in the machine are screened, usually moving clockwise toward the discharge opening, The reverse function switches the material movement between screening(counter-clockwise) and discharging (clockwise) the materials, and repeats the reversals to realize nearly perfect screening /discharge with efficiency exceeding 95%.
This can meet the powder industry’s demand for finer particles.

CLASSIFICATION/DIACHARGE AT MORE THAN 95% EFFICIENCY

ULTRASONIC UNIT

●Generator (NAVECTOR)

Power supply: 220v±10% (50/60hz),single-phase

Maximum output: 60W (variable according to the load)

Generating frequency: 35khz

Generating mode: Continuous/pulse

Outer dimensions:

●Ultrasonic screen P-type(Inner/outer)

●Generator (made by ArtechSwizerland)

Power supply: 220v±10% (50/60hz),single-phase

Rated current: Maximum 1A

Maximum output: 60W (variable according to the load)

Generating frequency: 35khz

Generating mode: Continuous/pulse/hopping operation

Protection class : IP65

Outer dimensions: ?

Ultrasonic intensity: 20~100%

●Ultrasonic screen P-type(Inner/outer)

Available Spare parts

VACUUM CONVEYOR

Vacuum Conveying Features:

Ø Negative pressure dust leakproof

Ø Enclosedconveying,moistureproof anti-pollution

Ø Simple equipment, covers small area

Ø Flexible pipe installation

Ø Easy automatic control

Ø No mechanical movement, no lubrication, simple maintenance

Technical key points:

Ø The choice of conveying air velocity

Ø Precise control in the process of delivery

Ø Choice of blanking ways

Ø Gas-solid separation

Specificaitons for MC mill

Note: the capacity data is according milling the granulated sugar to #80 mesh sugar powder production.
