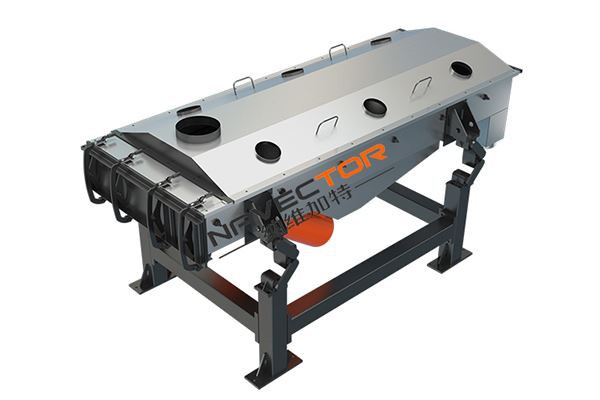

Charcoal Linear Vibrating Screen

Navector Universal Motion Rectangular Separators are driven by two contra-rotating unbalance motors. They utilise a linear motion directed to the plant's center of gravity.

Product Details

Charcoal Linear Vibrating Screen

Charcoal Linear Vibrating Screen

Introduction

Navector Universal Motion Rectangular Separators are driven by two contra-rotating unbalance motors. They utilise a linear motion directed to the plant's center of gravity.

The throwing angle of the screen results from its design and process engineering and is adjustable via the masses of the unbalance motors.

The screen box absorbs all the static and dynamic powers and supports itself at four points against the substructure.

The unbalance motors are located on the driving axle above the screen deck. The fact that the screen ascends before throwing guarantees an optimum dewatering of the material.


Date sheet:

Field of the application

Food,medicine,chemicals,abrasives,ceramics, mining, metallurgy,cosmetics and other industries

Feed size

0.074 – 10 mm

Screen

Stainless steel 304/316

Angle of inclination

1°- 7°

No. of screen decks

1 -2 per machine

Anti blinding systems

Rubber balls
Slider rings
Ultrasonic converters
Combinations

Model sizes

500 mm x 2000 mm
500 mm x 2500 mm
500 mm x 3000 mm
1000 mm x 2000 mm
1000 mm x 2500 mm
1000 mm x 3000 mm

Power

3 phase, 380 V, 50 Hz or Customized

Motor

2 x (0.4 kw – 1.5 kw)

Construction Materials

SUS 304 or Carbon Steel


Production flow:


Linear Vibrating Sifter Sieve can be provided with dust proof cover as required. It can be supplied of different sizes depending on capacity required.Inlets, outlets and legs can be customized to fit your installation requirements.



Application:


Navector is a manufacturer of Vibro Screen with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food, construction, pharmaceuticals, agriculture and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
