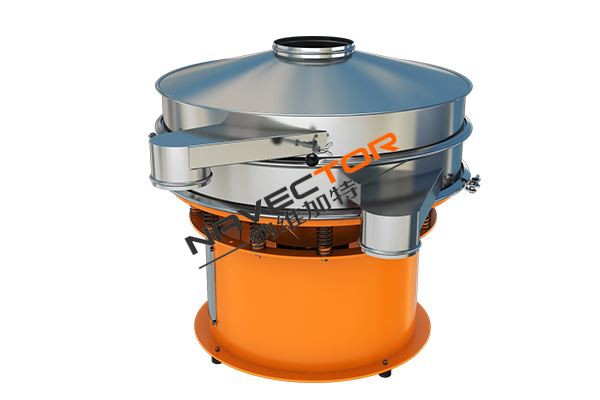

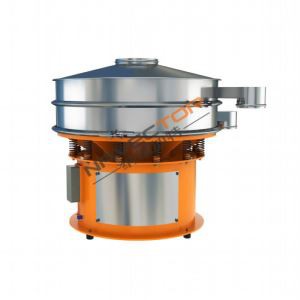

Cassava Starch Vibro Screen
Industrial Tapioca starch seed electric sand vibro sifter vibrating sieve machine price is designed as a high-precision screening machinery. The power plant is composed of vertical motor,and eccentric weight installed at two ends.
Product Description
Industrial Tapioca starch seed electric sand vibro sifter vibrating sieve machine price is designed as a high-precision screening machinery. The power plant is composed of vertical motor,and eccentric weight installed at two ends. We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. We have standard vibrating sieve machine and we can design machine as client's request,such as inlet hopper,inspection window,valve to control matering outflow and other requests.
 Cassava Starch Vibro Screen |  Cassava Starch Vibrating Screen |
Parameters
Type | 400 | 600 | 800 | 1000 | 1200 | 1500 |
A | 145 | 145 | 195 | 245 | 245 | 245 |
B | 100 | 100 | 100 | 150 | 170 | 200 |
C | 400 | 600 | 800 | 970 | 1170 | 1470 |
D | 700 | 900 | 940 | 990 | 1075 | 1200 |
E | 302 | 442 | 557 | 651 | 780 | 938 |
F | 370 | 480 | 505 | 555 | 610 | 675 |
G | 524 | 630 | 655 | 705 | 760 | 840 |
Power(KW) | 0.2 | 0.35 | 0.6 | 1.1 | 1.1 | 1.5 |
Excitation Force(KN) | 4 | 7 | 13 | 20 | 20 | 32 |
Attachable functions
Reverse
Reverse revolution during screening aims at perfect screening
The materials in the machine are screened, usually moving clockwise toward the discharge opening, The reverse function switches the material movement between screening(counter-clockwise) and discharging (clockwise) the materials, and repeats the reversals to realize nearly perfect screening /discharge with efficiency exceeding 95%.
This can meet the powder industry’s demand for finer particles.
CLASSIFICATION/DIACHARGE AT MORE THAN 95% EFFICIENCY
ULTRASONIC UNIT
●Generator (NAVECTOR)
Power supply: 220v±10% (50/60hz),single-phase
Maximum output: 60W (variable according to the load)
Generating frequency: 35khz
Generating mode: Continuous/pulse
Outer dimensions:
●Ultrasonic screen P-type(Inner/outer)
●Generator (made by ArtechSwizerland)
Power supply: 220v±10% (50/60hz),single-phase
Rated current: Maximum 1A
Maximum output: 60W (variable according to the load)
Generating frequency: 35khz
Generating mode: Continuous/pulse/hopping operation
Protection class : IP65
Outer dimensions: ?
Ultrasonic intensity: 20~100%
●Ultrasonic screen P-type(Inner/outer)
 Cassava Starch Sieving Machine |  Cassava Starch Vibro Screen Equipment |
Available Spare parts
