Graphite Compact Sieve

Low Profile Flow-Thru separator ,inline vibrating sieve shaker machine ,straight-flow inline vibro screens.

Introduction

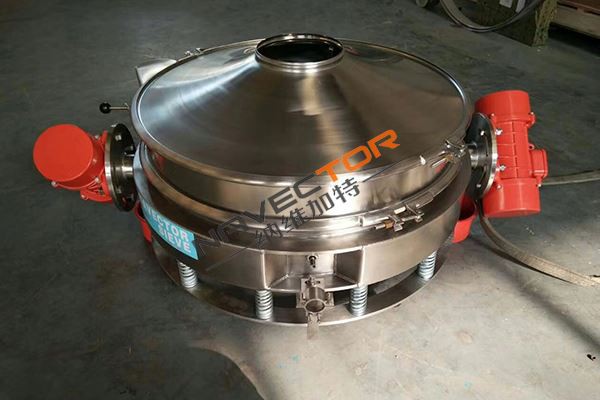

Direct discharge vibrating sieve is a new type screening machine, using a single or douvle horizontal vibration motor as the vibrating source, discharges the materials directly, having a greater handling capacity.

It is used in screening granules and powders of flour, starch, detergent, metal powder, additive, chemicals, non-mining industries etc. roughly, precisely. All products contact parts are made of stainless steel, elegant design and durable, small dimension, save space and easy to move.
Automation, the 24 hours of continuous production.

Working Principle
Low Profile Flow-Thru Separator through the motor vibration to produce excitation force, by adjusting the motor at both ends of the eccentric hammer weight and phase angle can change the size of the exciting force, effectively change the material trajectory, to extend the material on the screen surface to stay.

Main Features of low profile vibrating screen

1) Simple structure ,easy in installation and maintation.
2) Adopting advanced world famous brand components in bearing parts ,electric parts and operation parts.
3) Whole sealed design,no pollution.
4) Apply a linker to connect with the bucket elevator,air conveyor ,which can directly inline with mixing machine or pulverizer

Model Selection Tips

Please read this before you choose the suitable low profile vibrating screen model.

1.Please review your material properites: bulk density, water content, granule size range.

2.Required data: The result you wanna get by this machine, output per hour, mesh size and screen deck number.

3.Power supply: if you are not clear on it, please consult your electric staff to get the clear idea on it, if your power supply is not right to this machine, motor will be burned down.
4.Construction material: Stainless steel 304 for material contact parts and carbon steel for other parts. If there is special need, free to advise. There are multi option for you.

Detailed Images

Advantage of NCS vibrating screen
1.Compact structure, small volume.
2.Non-dust flying, low noise.
3.High output, low energy consumption.
4.Easy to be moved and maintained.

Applicable of csugar vibrating screen

1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder

2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup

3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder,

4. Medicinal industry: all kinds of medicine.

Features of sugar vibrating screen

1. Fully adjustable amplitudes of vibration.

2. 25 µm to 25 mm aperture quick change mesh - frames.

3. Automatic ejection of oversize materials.

4. 304 / 316 L stainless steel contact parts as standard.

5. Deep anti - splash top rims.

Bag dumping Screener
Scalps bulk material while collecting dust

Circular vibratory Bag Dump Screener scalp bag scraps and other oversize materials from manually dumped bulk materials while protecting the operator and plant environment against dust contamination. Ambient air and dust from dumping activities is drawn through dual cartridge filters that derive vacuum from ta top-mounted exhaust fan. Dust accumulated on the filter’s exterior surfaces is dislodged by pulse jet nozzles that alternately release short blasts of air on the timed cycle. Available in 600,800, 1000, 1200mm diameters, to 3-A,FDA and other standards.

Features:

● For chemical, pharmaceutical,food industries;­

● Dust removal function

● Vibrating screen,effectively remove the foreign material;

● Equipment adopts intelligent control

● No dead Angle inside the equipment

● Conforms to GMP requirements

When you purchase a sieve, filter or ultrasonic system, you can count on a team of dedicated staff in our aftermarket departments who will ensure whatever issue you may have is dealt with in the fastest, most efficient manner. Whether you require spare parts for your machine, are looking to have a screen remeshed or retrofit existing screen to ultrasonic vibrating screen, you can count on us to help.
